WEST MARINE TECHNOLOGIES PTE LTD

Moulding and Encapsulation

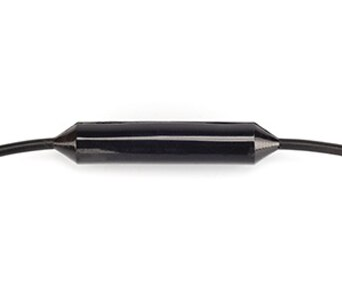

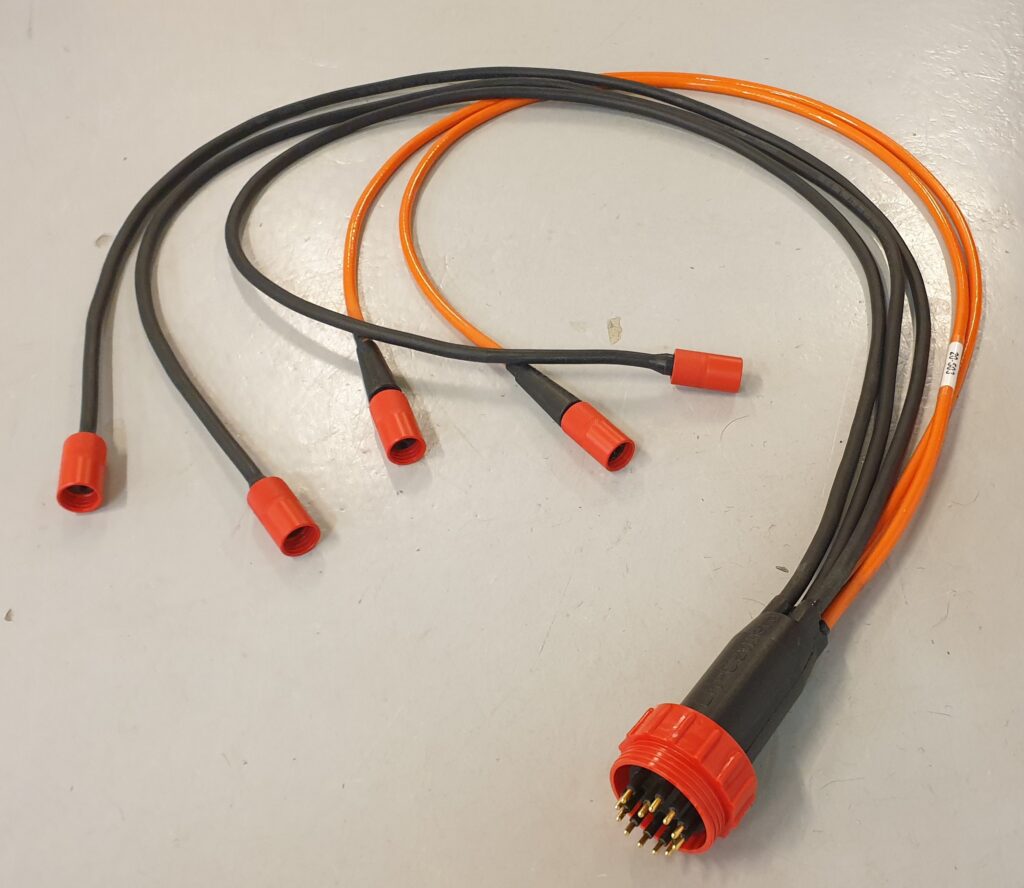

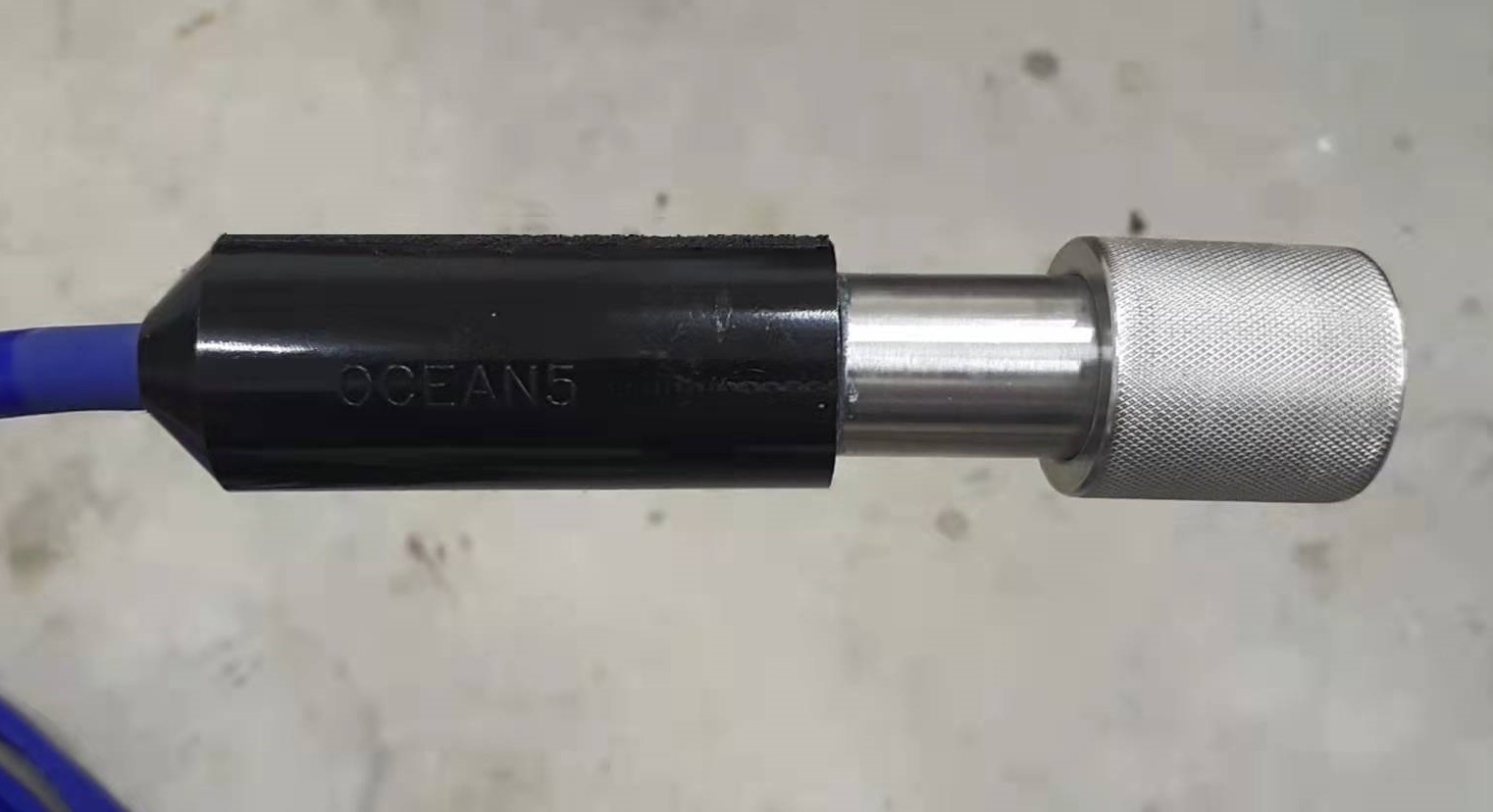

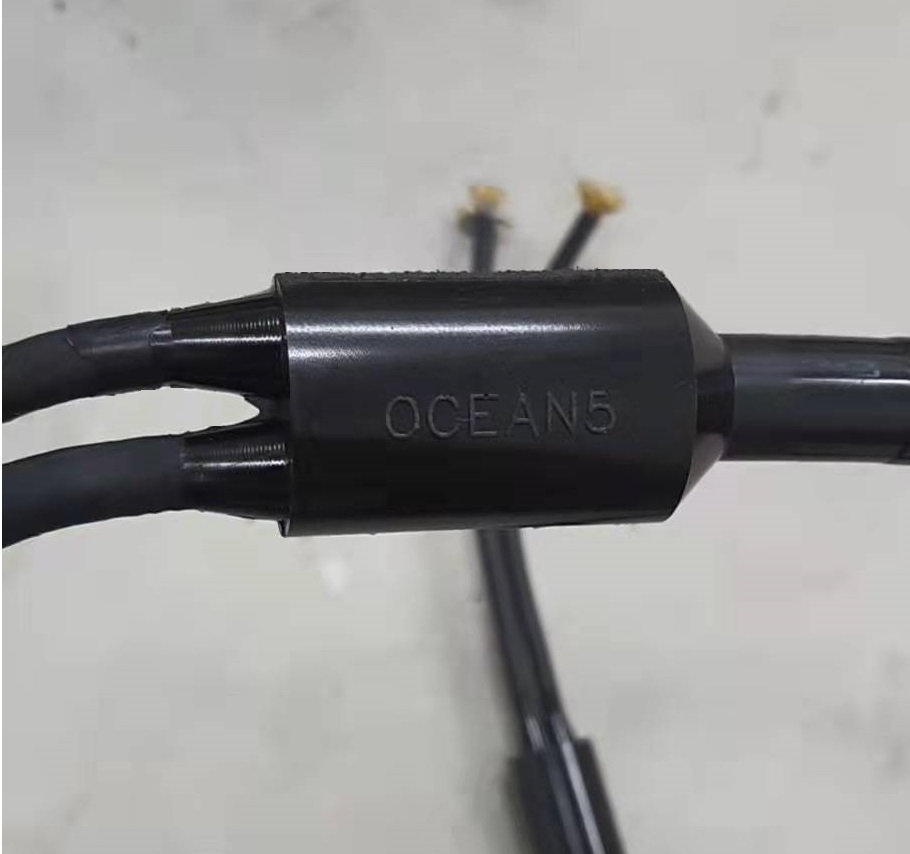

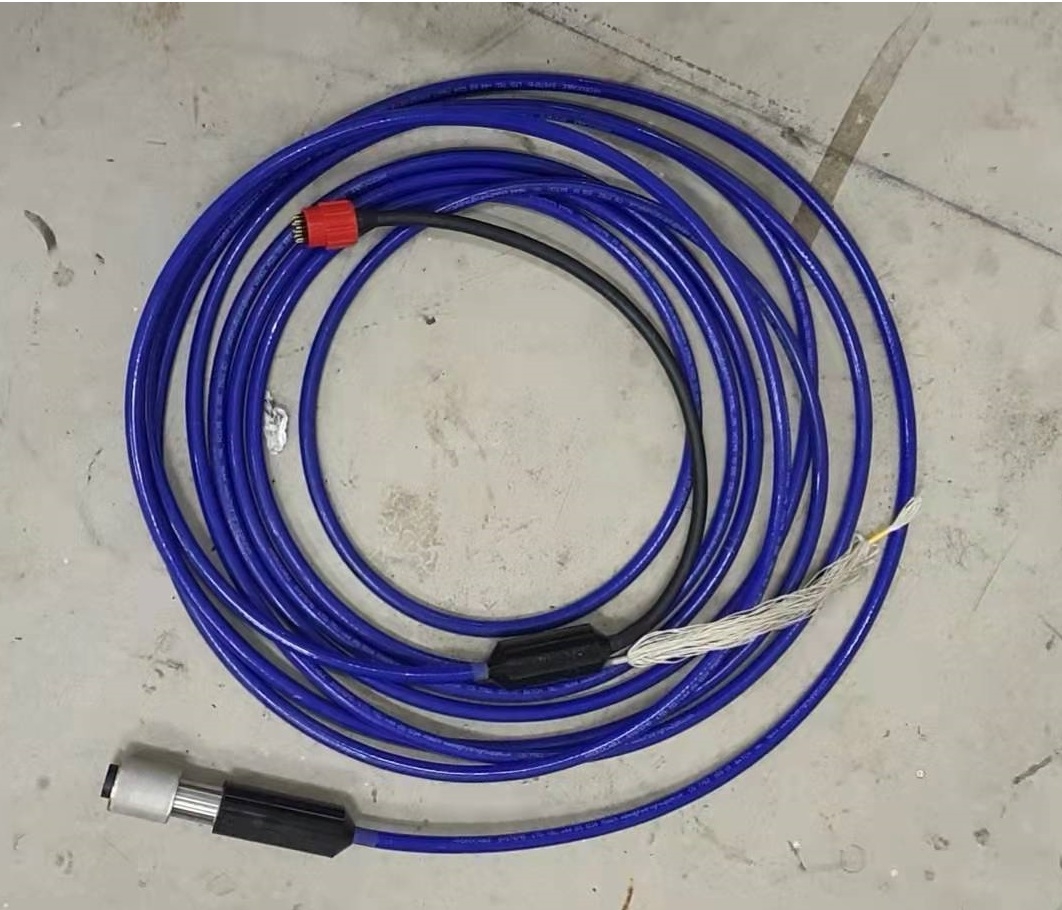

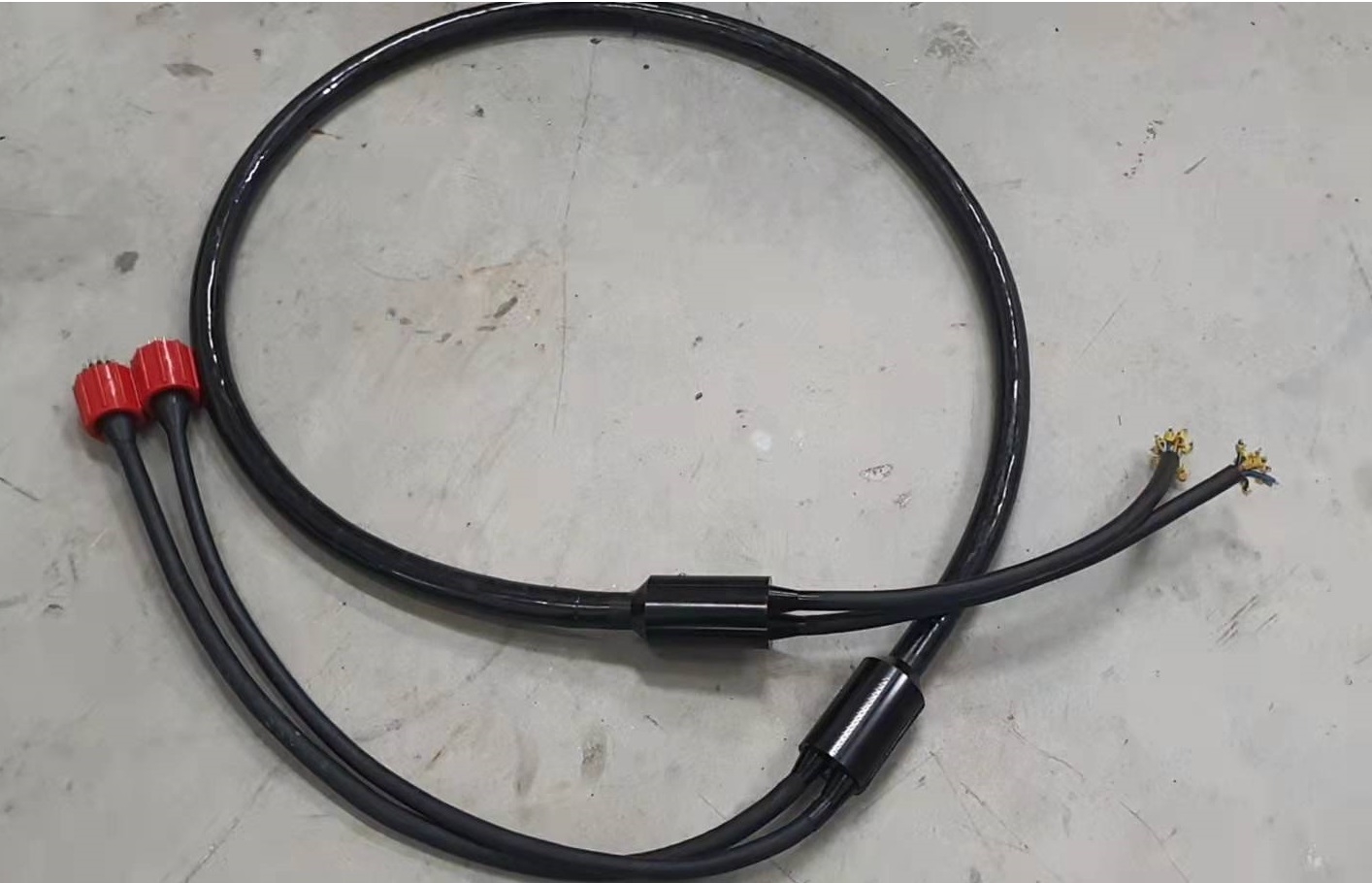

We use a wide range of polyurethanes, polyethylenes and epoxies suited for subsea cable moulding and encapsulation.

A considerable amount of standard mould forms is available for most popular brands of subsea connector types. Moulds can also be manufactured to suit any bespoke applications.

Specifications

Physical Properties                       Unit                          DIN Standard                      Typical Value


Hardness                                    Shore A                     53505                                      90

20% Modulus                               MPa                       53504-s2                                   3.9

50% Modulus                               MPa                       53504-s2                                   5.9

100% Modulus                              MPa                       53504-s2                                   7.7

200% Modulus                             MPa                       53504-s2                                   10.0

300% Modulus                             MPa                       53504-s2                                   13.3

Stress at Break                            MPa                       53504-s2                                  59.77

Strain at Break                               %                          53504-s2                                   510

Tear Strength                              kN/m                        53515                                        79.5

Abrasion Loss                               mm³                  53516 Method A                           55.3

Specific Gravity                                                             53479                                        1.08

Rebound Resilience                      %                             53512                                        53.9
